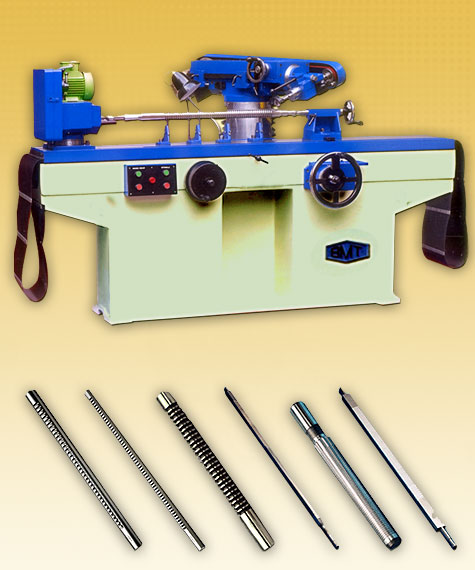

| STANDARD ACCESSORIES :- |
OPTIONAL EQUIPMENT |
- 1 Head Stock
- 1 Tail Stock
- 3 Steady Rests
- 1 Up-Down Center
- 2 Arbors For Clamping Wheel
- 3 V-Belt, Flat, Belts
- 1 Spanner Set, Allenkey Set
- 1 Bellow Cover Set
- 1 Simple Dresser Stand
|
- Dust Collector
- Permanent Magnetic Chuck
- Machine Lamp
- Dressing Attatchment Universal
- Direct Indexing Systems Holes 24
- Niking Attatchment
- Niking Attatchment
|
|
| Table |
F-2 |
F-4 |
F-6 |
| Length |
800 |
1500 |
1800 |
| Max. Sharpening Length |
650 |
1300 |
1600 |
| Height of Centre |
140 |
155 |
155 |
| Max. Diameter of Broach |
80 |
160 |
160 |
| Max. Width of Flat Broach |
140 |
160 |
160 |
| Max. Height of Flat Broach top from Magnet Base |
75 |
100 |
100 |
| Table Surface Dimension |
1270 x 280 |
2182 x 330 |
2430 x 330 |
| No. of T-Slot & Size |
1-12 |
1-12 |
1-12 |
| HEAD STOCK |
| Spindle TAper |
MT-3 |
MT-4 |
MT-4 |
| No. of Speed & RPM |
63,98,140 |
30,45,60,80 |
30,45,60,80 |
| TAIL STOCK |
| Quill Taper |
MT-3 |
MT-4 |
MT-4 |
| Quill Travel |
30 mm |
40 mm |
40 mm |
| LONGITUDINAL TRAVEL |
| One Revolution Of Hand Wheel |
|
|
|
| Slow & 1 DIV = 0.2 |
4.6 |
4.6 |
4.6 |
| Rapid &1 DIV = 2.0 |
46.0 |
46.0 |
46.0 |
| VERTICAL TRAVEL |
| One Revolution Of Hand Wheel |
| Slow & 1 DIV = 0.2 |
2.0 |
2.0 |
2.0 |
| Rapid &1 DIV = 2.0 |
4.0 |
4.0 |
4.0 |
| Vertical Travel Spindle to Table Top |
400 |
500 |
500 |
| GRINDING SLIDE SWIVEL AROUND |
| The Horizontal Axis |
360° |
360° |
360° |
| Spindle Vertical Axis |
0-90 ° |
0-90 ° |
0-90 ° |
| MOVEMENT OF GRINDING SLIDES |
| Max. Cross Movement of Grinding Slide |
180 |
210 |
210 |
| Max. Vertical Movement of Spindle to Table Top |
300 |
400 |
400 |
| Max. Height to Table Top to Cup Stone |
100 |
100 |
100 |
| ELECTRICALS |
| Grinding Spindle Motor |
1.0 HP 1425RPM |
1.0 HP 1425RPM |
1.0 HP 1425RPM |
| Work Head Motor |
0.5 HP 1440RPM |
0.75 HP 960 RPM |
0.75 HP 960 RPM |
| GRINDING WHEEL |
| Min. & Max. Diameter Of Grinding Wheel |
50-150 |
50-150 |
50-150 |
| Number Of Grinding Wheel Speed Of Rpm |
2800, 5000, 7500 |
2800, 5000, 7500 |
2800, 5000, 7500 |
| Space Occupied (L x W x H) |
230x120x160 |
370x120x160 |
430x120x160 |
|
